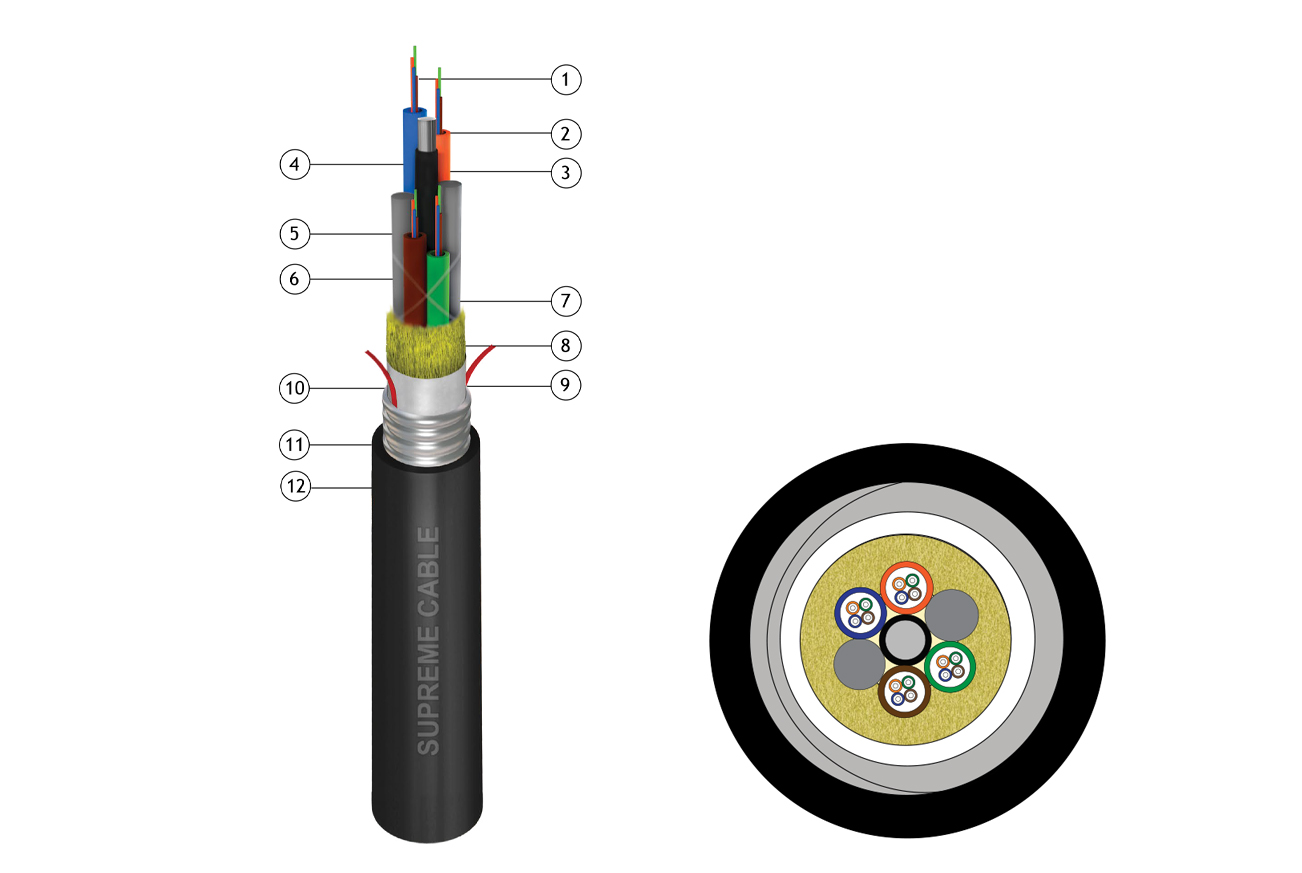

Duct Cable

  • Single Mode Loose Tube Optical Fiber (STEL K-015)
  • Colour coded optical fibers, strength members, gel filled loose tube, water swellable tape, aluminium tape screened and polyethylene sheath.
  • Application
  • Designed to be pulled into duct system or laid into duct tray in service ducts of an Optical Fiber Cable communications network.

Construction :

  • 1. Single mode colour coded optical fibers
  • 2. Thixotropic filling gel
  • 3. Extruded colour coded loose tubes
  • 4. Fiber reinforced plastic with polyethylene sheath or round steel wire with polyethylene sheath
  • 5. Filler rods
  • 6. Binder
  • 7. Jelly filled interstices
  • 8. Aramid yarn
  • 9. Water swellable tape
  • 10. Rip cord
  • 11. Aluminium tape
  • 12. Polyethylene outer sheath

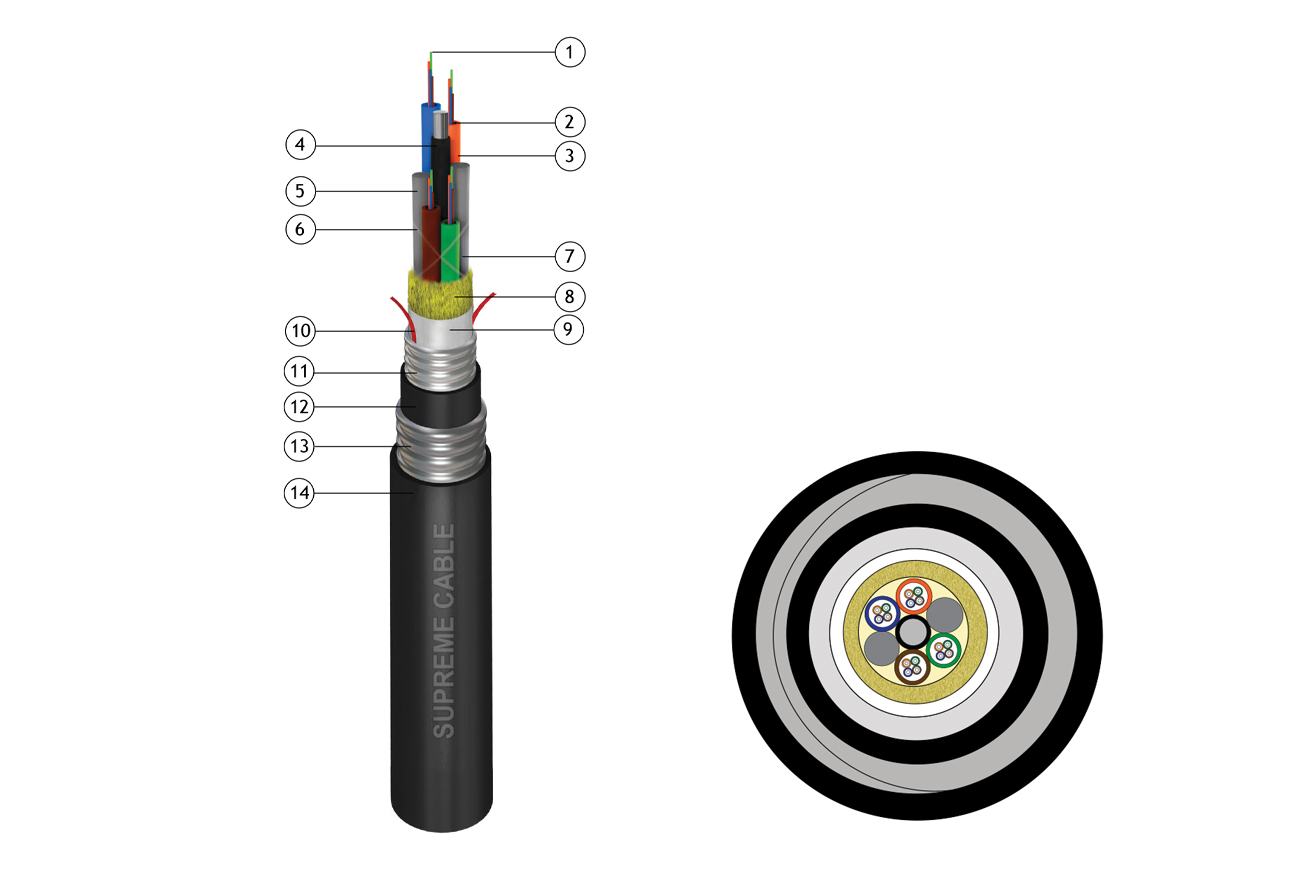

Direct Buried Cable

  • Single Mode Loose Tube Optical Fiber (STEL K-016)
  • Colour coded optical fibers, strength members, gel filled loose tube, water swellable tape, aluminium tape screened, steel tape corrugated armoured and polyethylene sheath.
  • Application
  • Designed to be buried directly in the ground by either trenching or ploughing.

Construction :

  • 1. Single mode colour coded optical fibers
  • 2. Thixotropic filling gel
  • 3. Extruded colour coded loose tubes
  • 4. Fiber reinforced plastic with polyethylene sheath or round steel wire with polyethylene sheath
  • 5. Filler rods
  • 6. Binder
  • 7. Jelly filled interstices
  • 8. Aramid yarns
  • 9. Water swellable tape
  • 10. Rip cord
  • 11. Aluminium tape
  • 12. Polyethylene inner sheath
  • 13. Corrugated steel tape
  • 14. Polyethylene outer sheath

Aerial Cable

  • Single Mode Loose Tube Optical Fiber (STEL K-017)
  • Colour coded optical fibers, strength members, gel filled loose tube, water swellable tape, aluminium tape screened, steel wire messenger and polyethylene sheath.
  • Application
  • Designed to be hung from the utility poles of an Optical Fiber Cable communications network.

Construction :

  • 1. Single mode colour coded optical fibers
  • 2. Thixotropic filling gel
  • 3. Extruded colour coded loose tubes
  • 4. Fiber reinforced plastic with polyethylene sheath
  • 5. Filler rods
  • 6. Binder
  • 7. Jelly filled interstices
  • 8. Aramid yarn
  • 9. Water swellable tape
  • 10. Rip cord
  • 11. Aluminium tape
  • 12. Stranded galvanized round steel wire messenger
  • 13. Polyethylene outer sheath

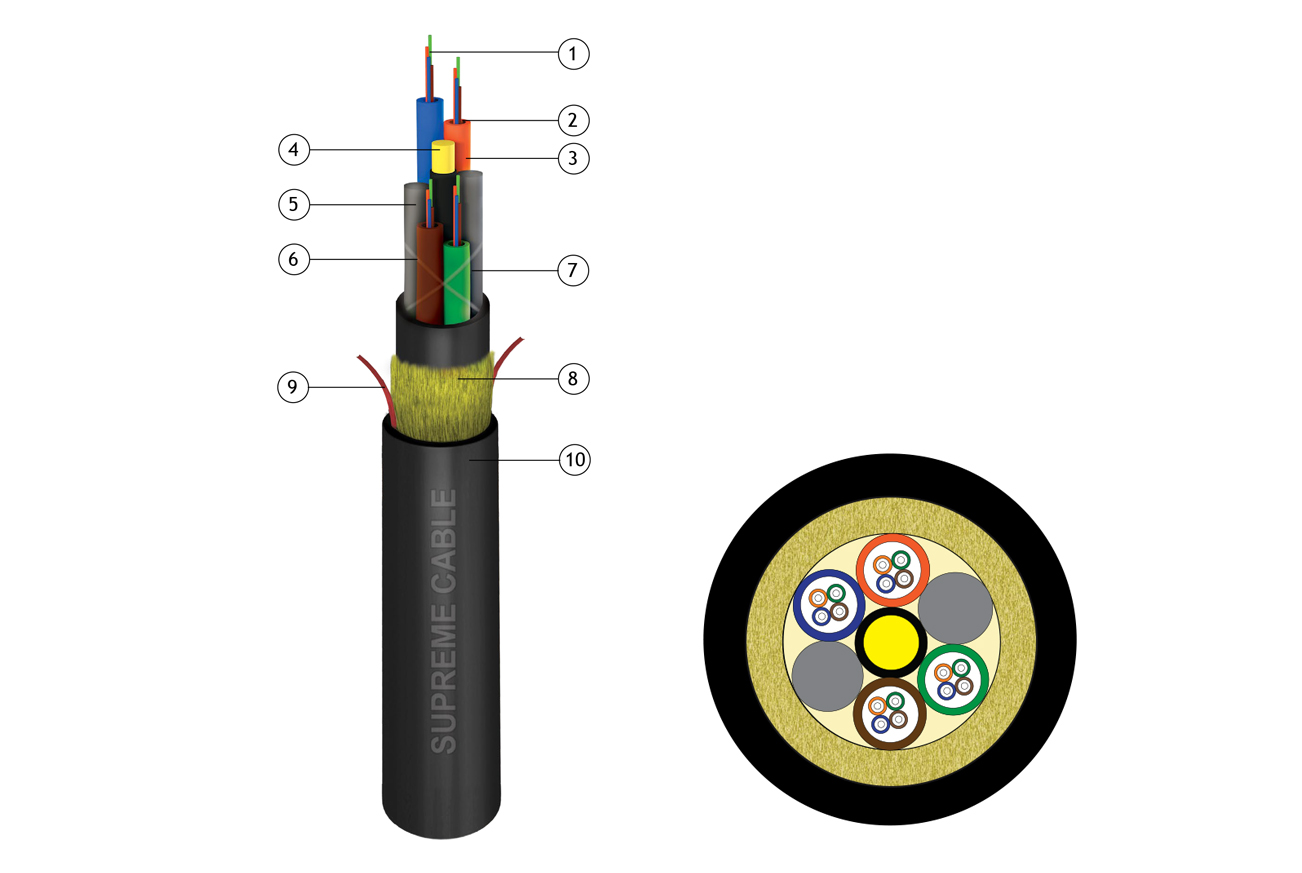

All Dielectric Self Supporting Aerial (ADSS) Cable

  • Single Mode Loose Tube ADSS Optical Fiber
  • Colour coded optical fibers, strength members, gel filled loose tube, water swellable tape, polyethylene inner sheath, aramid yarns and polyethylene sheath.
  • Application
  • Designed to be hung from the utility poles of an Optical Fiber Cable communications network.

Construction :

  • 1. Single mode colour coded optical fibers
  • 2. Thixotropic filling gel
  • 3. Thermal plastic colour coded tubes
  • 4. Fiber reinforced plastic with polyethylene sheath
  • 5. Filler rods
  • 6. Binder
  • 7. Polyethylene inner sheath (Optional)
  • 8. Aramid yarns strength member
  • 9. Rip cord
  • 10. Polyethylene outer sheath

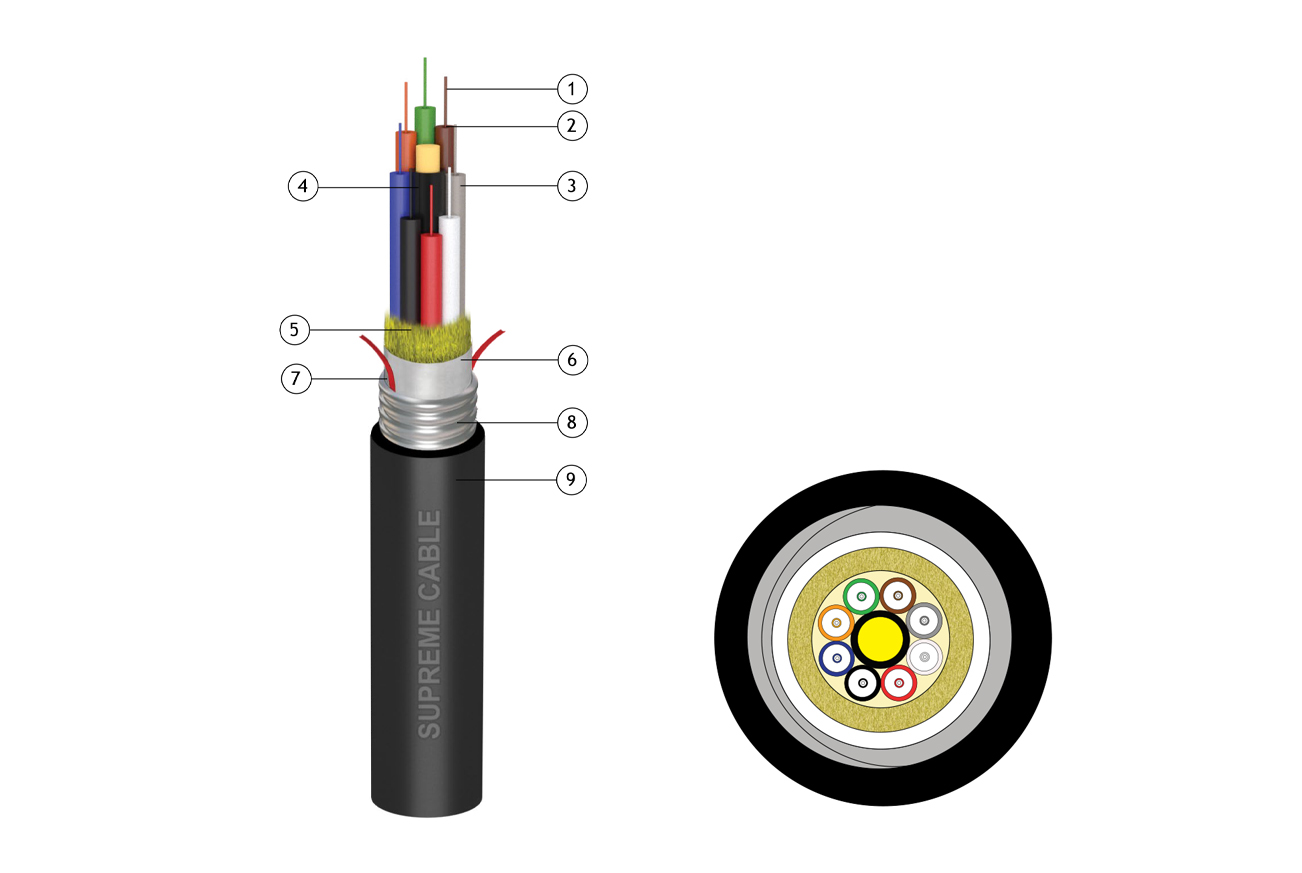

Duct Cable

  • Single Core Per Tube (SCPT) (STEL K-037)
  • Colour coded optical fibers, strength members, gel filled loose tube, watel swellable tape, aluminium tape screened, and polyethylene sheath
  • Application
  • Designed to be pulled in to duct system or laid in to duct tray in service ducts of an Optical Fiber Cable Communications network.

Construction :

  • 1. Single mode colour coded optical fibers
  • 2. Thixotropic filling gel
  • 3. Extruded colour coded loose tubes
  • 4. Round steel wire with polyethylene sheath
  • 5. Aramid yarns
  • 6. Water swellable tape
  • 7. Rip cord
  • 8. Aluminium tape
  • 9. Polyethylene outer sheath

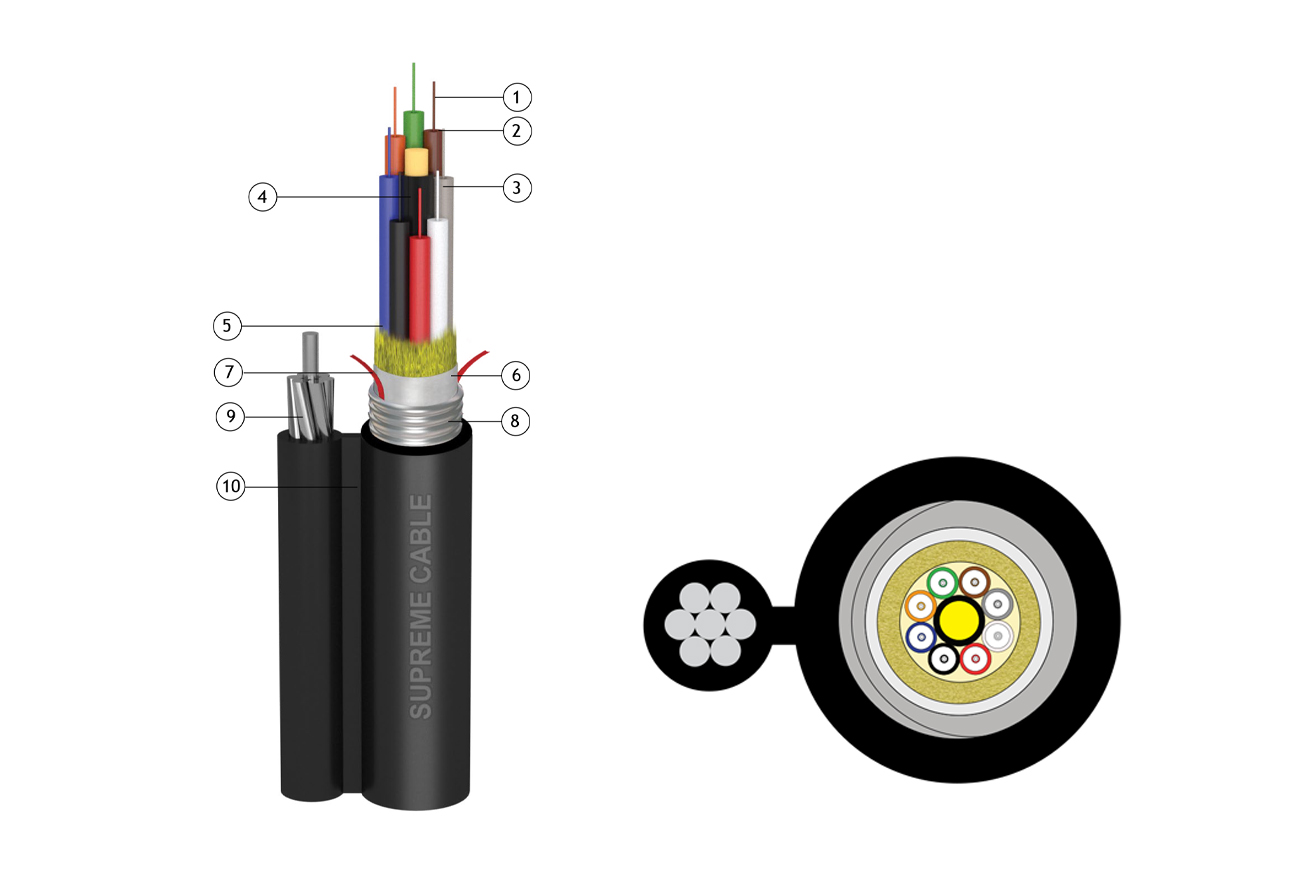

Aerial Cable

  • Single Core Per Tube (SCPT) (STEL K-036)
  • Colour coded optical fibers, strength members, gel filled loose tube, watel swellable tape, aluminium tape screened, steel wire messenger and polyethylene sheath
  • Application
  • Designed to be hung from the utility poles of an Optical Fiber Cable communications network

Construction :

  • 1. Single mode colour coded optical fibers
  • 2. Thixotropic filling gel
  • 3. Extruded colour coded loose tubes
  • 4. Fiber reinforced plastic with polyethylene sheath
  • 5. Aramid yarn
  • 6. Water swellable tape
  • 7. Rip cord
  • 8. Aluminium tape
  • 9. Stranded galvanized round steel wire messenger
  • 10. Polyethylene outer sheath

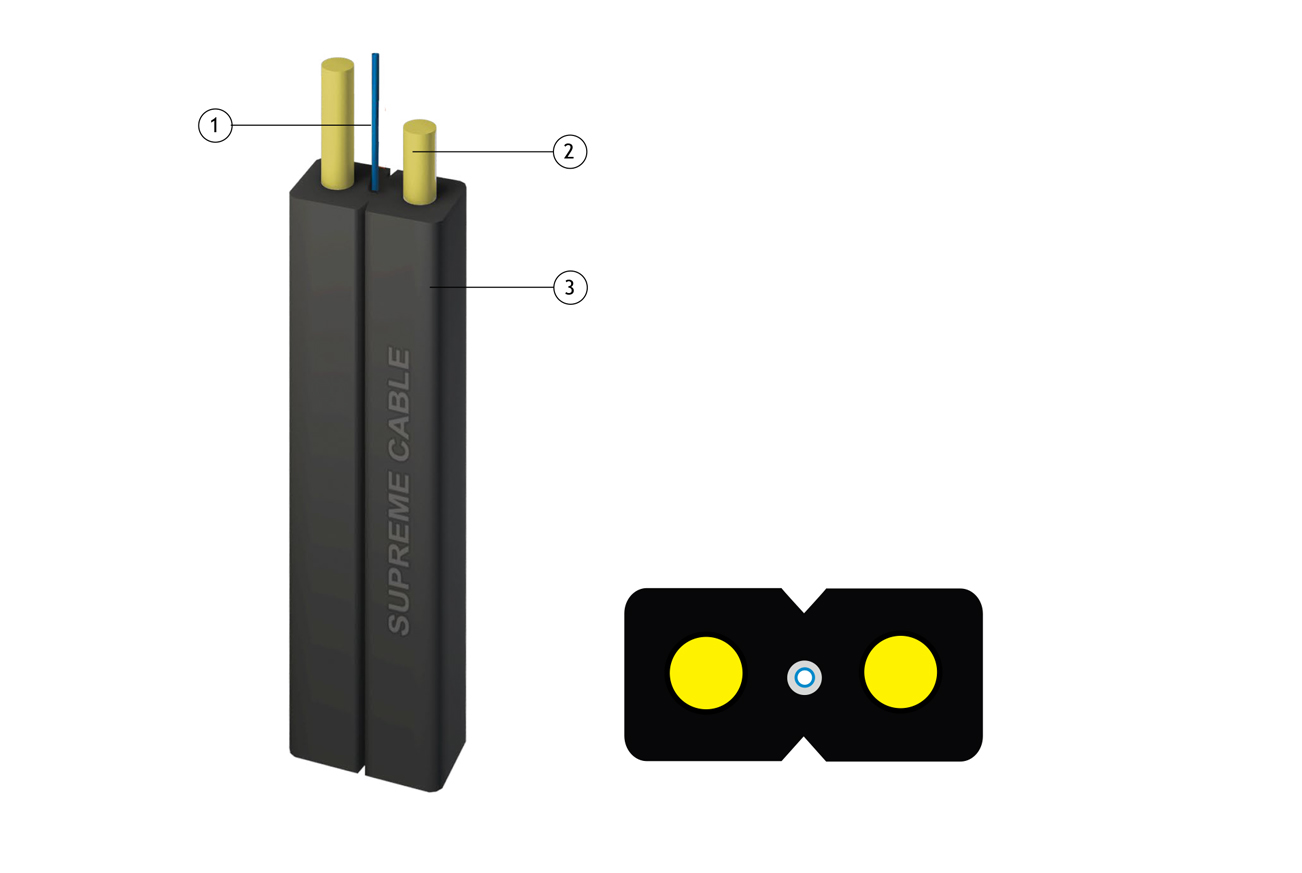

Indoor Optical Fiber Cable (STEL K-032)

  • Manufacturing Specification
  • Colour coded optical fibers, fiber reinforced plastic strength member and polyethylene sheath.
  • Application
  • Designed to be used in pipe as indoor optical fiber cable.

Construction :

  • 1. Fiber reinforced plastic with polyethylene sheath
  • 2. Colour coded optical fibers
  • 3. Polyethylene outer sheath











Drop Aerial Optical Fiber Cable (STEL K-033)

  • Manufacturing Specification
  • Colour coded optical fibres, galvanized round steel wire messenger, fiber reinforced plastic strength member and polyethylene sheath.
  • Application
  • Designed to be used in air as drop aerial optical fiber cable.

Construction :

  • 1. Galvanized round steel wire messenger
  • 2. Fiber Reinforced Plastic with polyethylene sheath
  • 3. Colour coded optical fibers
  • 4. Polyethylene outer sheath










Drop Optical Fiber Cable (STEL K-034)

  • Manufacturing Specification
  • Colour coded optical fibers, fiber reinforced plastic strength member and polyethylene sheath.
  • Application
  • Designed to be used in pipe as drop optical fiber cable.

Construction :

  • 1. Fiber reinforced plastic with polyethylene sheath
  • 2. Colour coded optical fibers
  • 3. Polyethylene outer sheath
